平行式單閘板閘閥:參數六

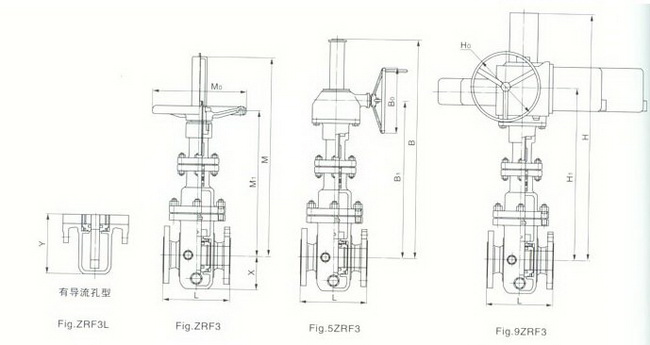

主要外形尺寸和重量 CLASS400
| 規格 |
L(RF) |
L(BW) |
手動 |
齒輪傳動 |
電動* |
X |
Y |
重量**(kg) |
扭矩(N.m) |
| mm |
in |
M |
Mi |
Mo |
B |
B1 |
Bo |
H |
H~ |
Ho |
BW |
RF |
| 25 |
1 |
2~6 |
216 |
295 |
230 |
200 |
- |
- |
- |
- |
- |
- |
86 |
100 |
- |
- |
- |
| 32 |
11/4 |
229 |
229 |
368 |
285 |
200 |
- |
- |
- |
- |
- |
- |
77 |
116 |
- |
- |
- |
| 40 |
11/2 |
241 |
241 |
457 |
352 |
250 |
- |
- |
- |
- |
- |
- |
83 |
127 |
- |
- |
19 |
| 50 |
2 |
292 |
292 |
499 |
378 |
250 |
- |
- |
- |
723 |
601 |
200 |
88 |
135 |
51 |
59 |
24 |
| 65 |
21/2 |
330 |
330 |
562 |
446 |
300 |
- |
- |
- |
785 |
670 |
200 |
100 |
167 |
58 |
70 |
51 |
| 80 |
3 |
356 |
356 |
630 |
483 |
300 |
- |
- |
- |
902 |
756 |
508 |
110 |
196 |
84 |
100 |
66 |
| 100 |
4 |
406 |
406 |
735 |
562 |
350 |
- |
- |
- |
1007 |
835 |
508 |
121 |
242 |
137 |
165 |
90 |
| 150 |
6 |
495 |
495 |
956 |
720 |
350 |
1096 |
805 |
305 |
1216 |
848 |
305 |
160 |
380 |
210 |
240 |
156 |
| 200 |
8 |
597 |
597 |
1150 |
856 |
400 |
1290 |
941 |
305 |
1440 |
1013 |
305 |
187 |
462 |
340 |
385 |
228 |
| 250 |
10 |
673 |
673 |
1439 |
1013 |
500 |
1580 |
1098 |
305 |
1728 |
1170 |
305 |
230 |
545 |
505 |
565 |
368 |
| 300 |
12 |
762 |
762 |
1545 |
1155 |
600 |
1705 |
1250 |
458 |
1833 |
1312 |
305 |
265 |
660 |
680 |
765 |
550 |
| 350 |
14 |
826 |
826 |
1818 |
1313 |
650 |
1977 |
1408 |
458 |
2131 |
1480 |
305 |
292 |
705 |
1010 |
1130 |
630 |
| 400 |
16 |
802 |
902 |
1965 |
1445 |
700 |
2125 |
1540 |
458 |
2278 |
1610 |
305 |
320 |
792 |
1430 |
1580 |
870 |
| 450 |
18 |
978 |
978 |
2295 |
1560 |
800 |
2525 |
1700 |
458 |
2655 |
1741 |
457 |
358 |
878 |
1940 |
2120 |
980 |
| 500 |
20 |
1054 |
1054 |
2452 |
1655 |
1000 |
2682 |
1795 |
458 |
2812 |
1936 |
610 |
396 |
963 |
2500 |
2750 |
1208 |
| 600 |
24 |
1232 |
1232 |
- |
- |
- |
3186 |
2235 |
458 |
3356 |
2413 |
610 |
468 |
1287 |
3710 |
4050 |
2150 |
| 700 |
28 |
1397 |
1397 |
- |
- |
- |
- |
- |
- |
3902 |
2777 |
610 |
500 |
1375 |
5100 |
5700 |
- |
| 800 |
32 |
1650 |
1650 |
- |
- |
- |
- |
- |
- |
4393 |
3121 |
610 |
556 |
1507 |
6920 |
7547 |
- |
| 900 |
36 |
1880 |
1880 |
- |
- |
- |
- |
- |
- |
4863 |
3428 |
760 |
600 |
1650 |
9800 |
10600 |
- |
注：*電動裝置可根據客戶需要選型
**表中所列重量為光桿、無導流孔型重量，不包含驅動裝置。
